2017.06.07
SY35U compact excavator, the star product of SANY, features superior efficiency, reliability and profitability. The zero tail swing design allows the machine to work flexibly at narrow spaces, such as near the wall and wall corner. In addition, it is more powerful than the competitors and easier to dig hard soils. With over 40 different attachments available, the 3.78ton mini excavator is able to perform digging, grabbing, cutting, breaking and various other jobs.

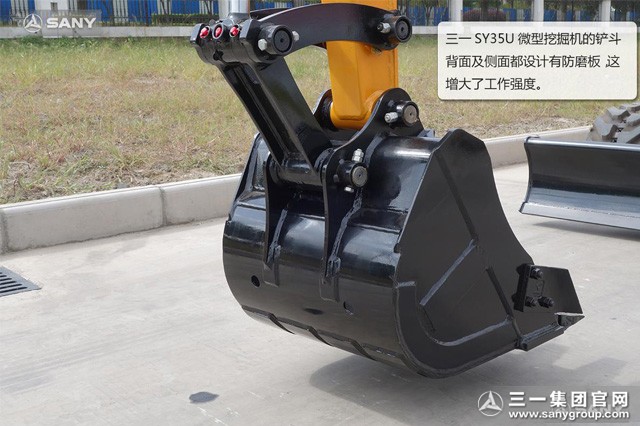

The back and both sides of SY35U bucket are reinforced for better wear resistance.

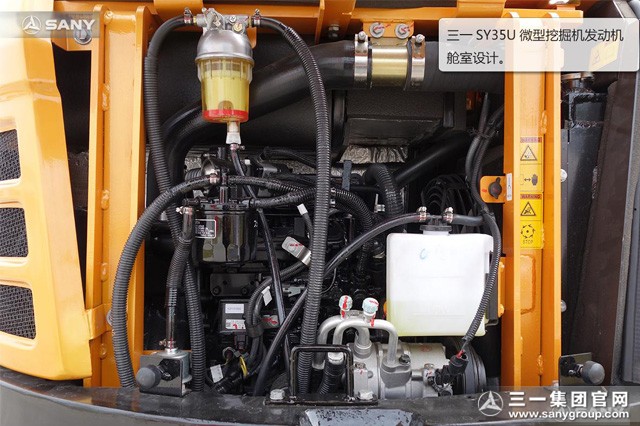

Engine compartment of SANY SY35U mini excavator.

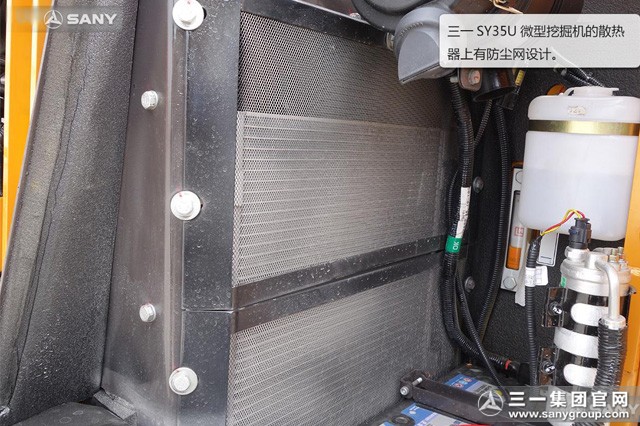

The mesh prevents dust from going into the radiator.

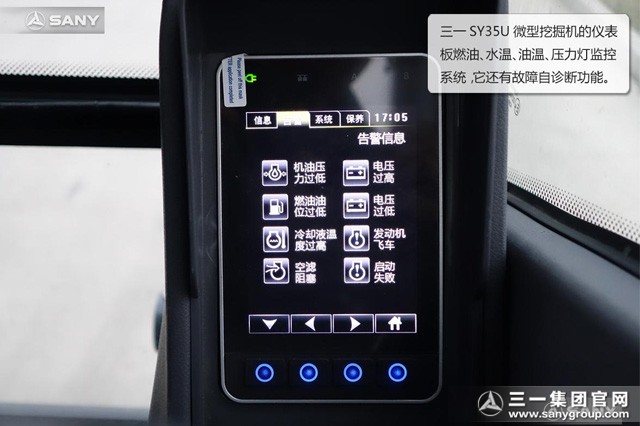

The monitor panel of oil, fuel, water temperature and voltage; self-diagnosis function.

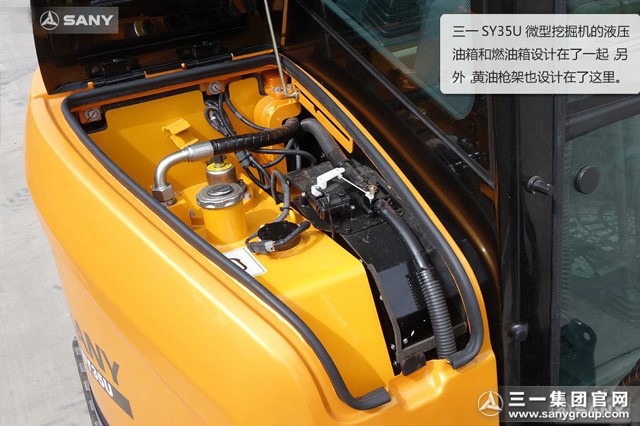

This compartment is designed for the hydraulic oil tank, fuel tank and grease gun holder.

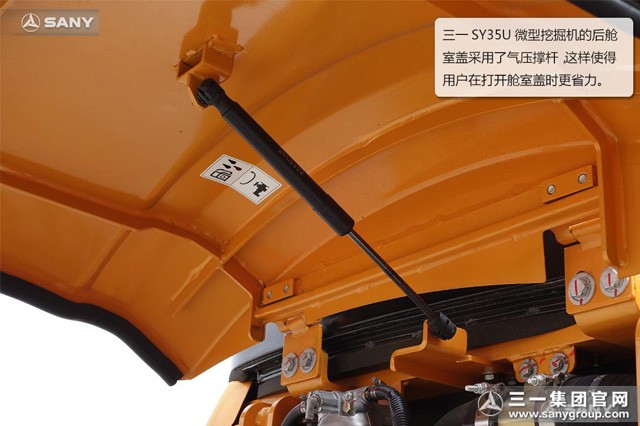

The pneumatic rod of the rear compartment makes it much easier for the customers to open the cover.

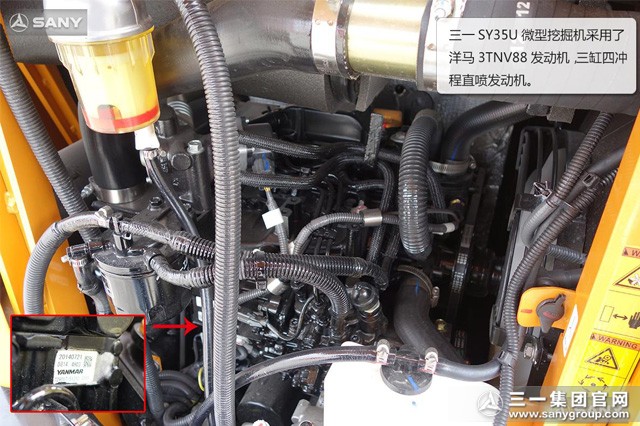

SY35U adopts Yanmar 3TNV88 engine, which is a three-cylinder four-stroke direct injection engine.

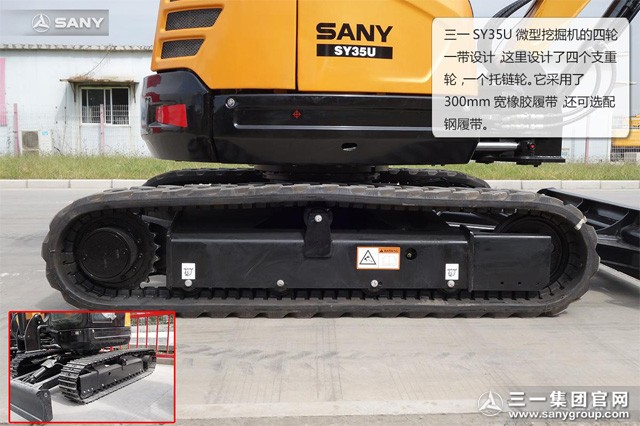

SY35U is equipped with four track rollers, one carrier roller and 300mm wide rubber track. The steel track is also optional.

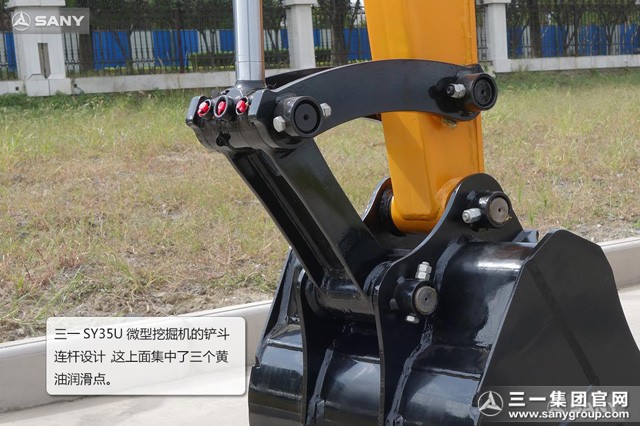

Three greasing points are designed on the bucket linkage.

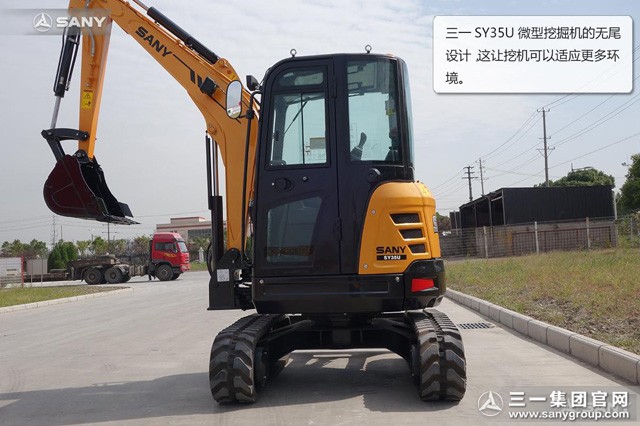

The zero tail swing design makes SY35U a flexible machine at tight jobsites.

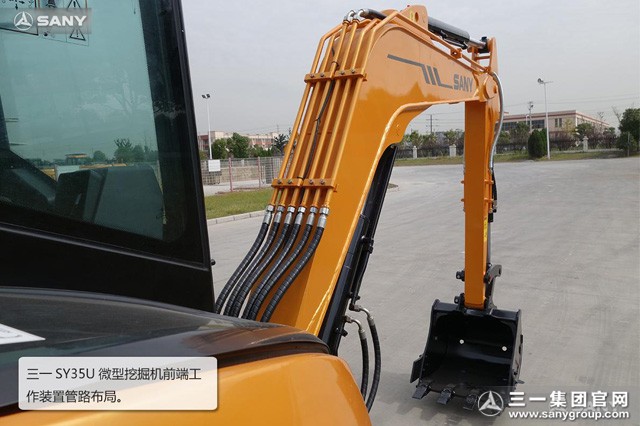

The pipeline layout of the front device.

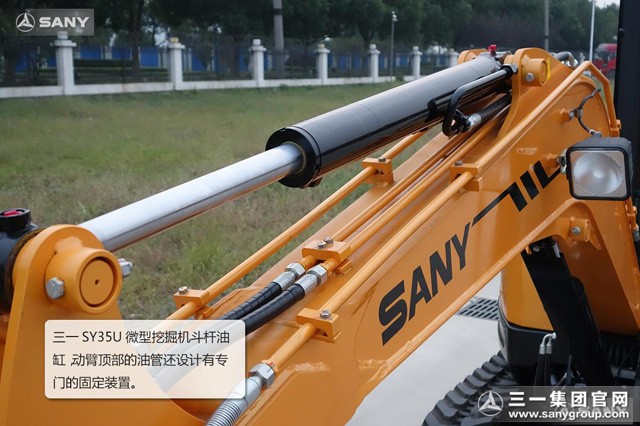

Arm cylinder, and an ad hoc device to fix the pipelines on the boom top.

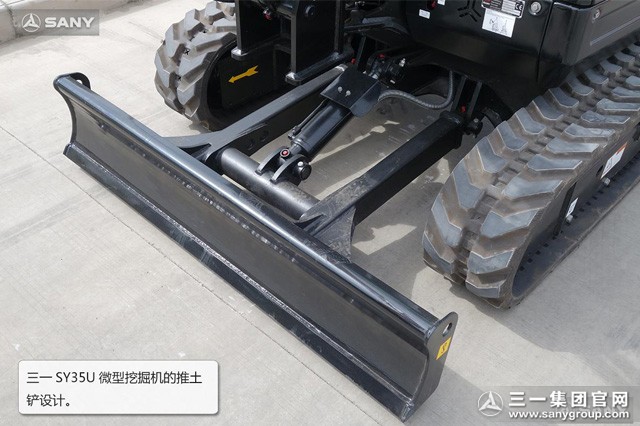

Blade of SY35U mini excavator.

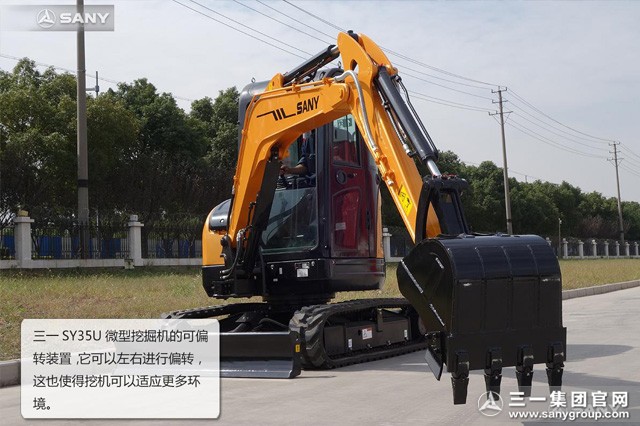

The deflectable boom allows SY35U boom to swing left 800mm, right 550mm, able to operate even in wall foot area.

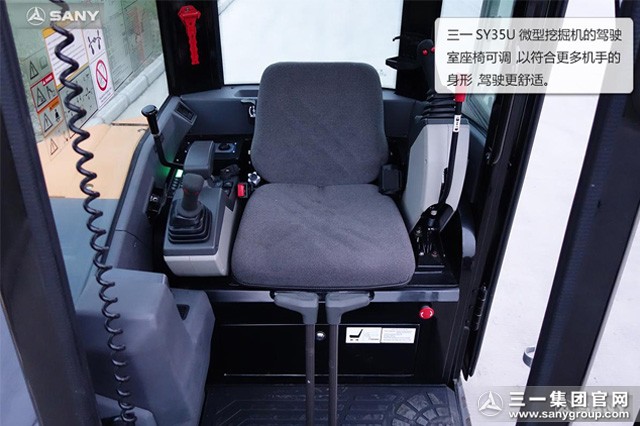

The ergonomic and adjustable seat ensures max. comfort for the operators.

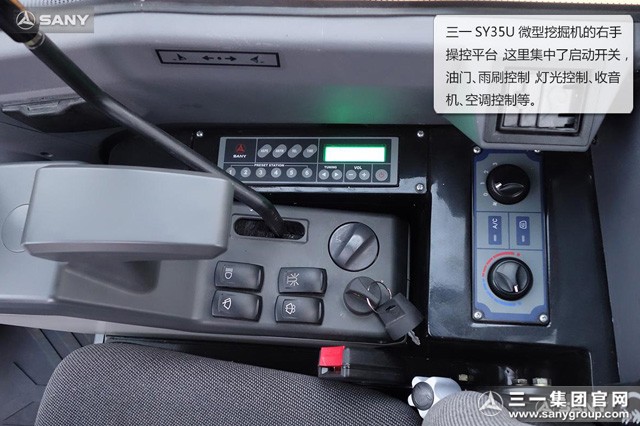

The startup switch, accelerator, radio, and switch of windshield wiper, light and air conditioner are gathered here.

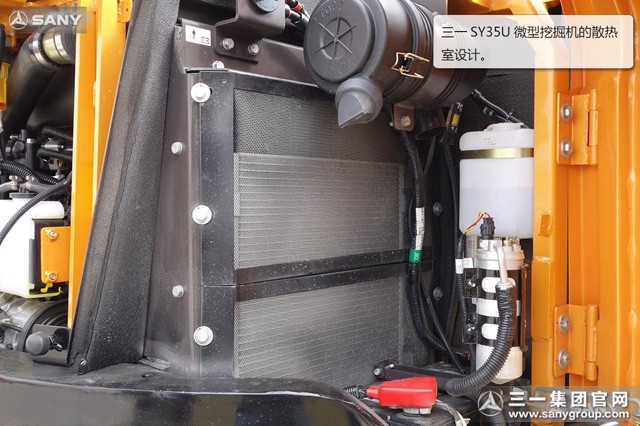

Radiator compartment of SY35U.

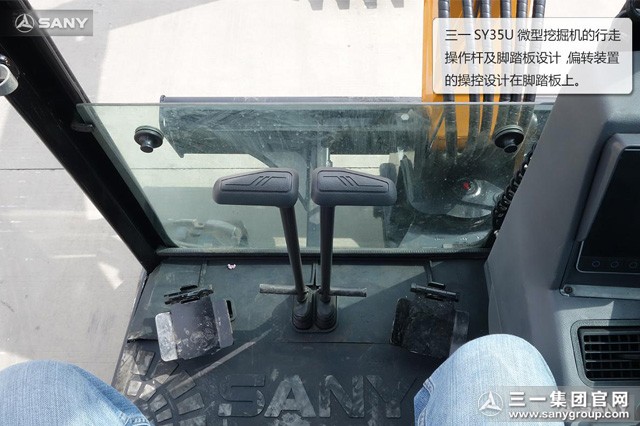

The travel handle and pedal of SY35U. The deflectable boom control is on the pedal.

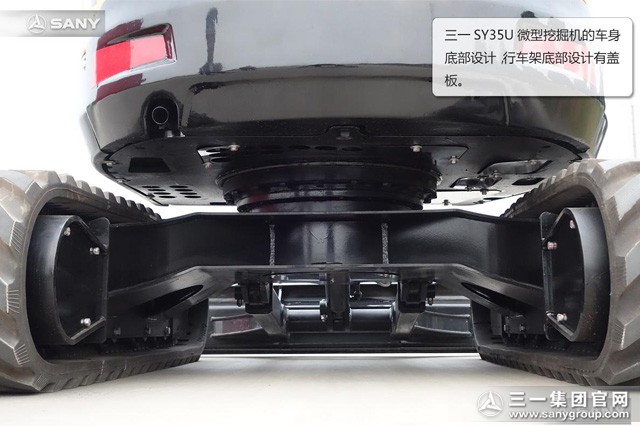

Undercarriage of SY35U.

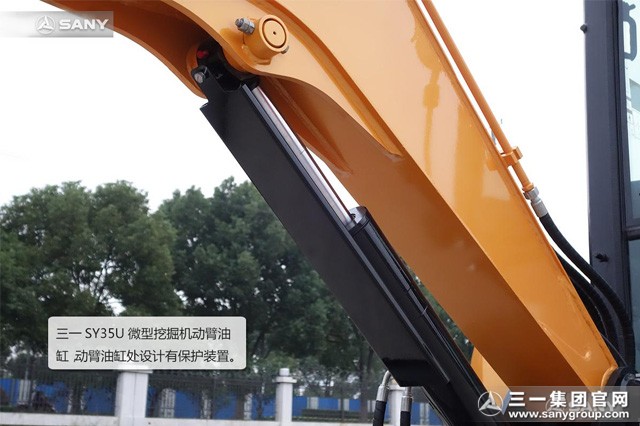

The SY35U boom cylinder is equipped with the protective device.

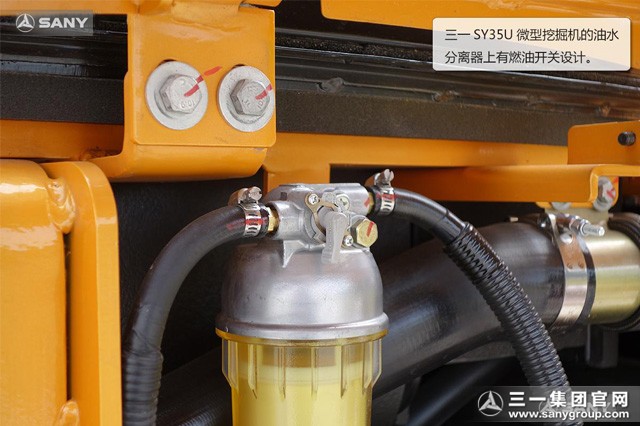

The fuel switch is on the water separator.
